SS5-05N1-050-005

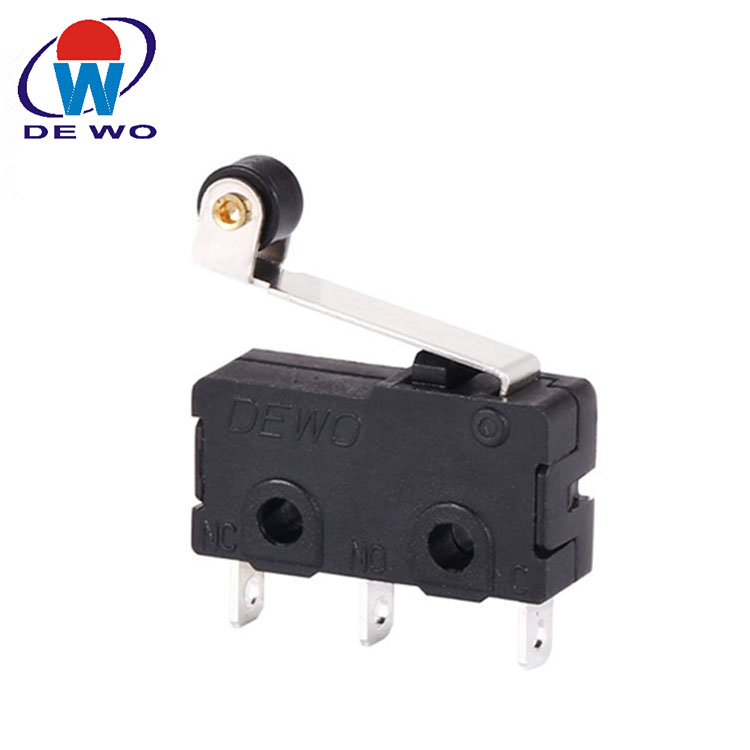

Item: Micro switch

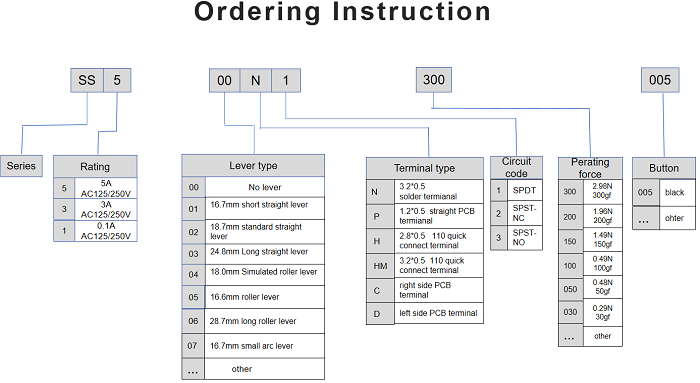

Part Number:SS5-05N1-050-005
Specification:
Rating:
5A 125/250VAC
3A 125/250VAC
0.1A 125/250VAC
Contact Resistance:≤100m? Max
Insulation Strength:≥100m? DC500V
Temperature: 40T125
Test Voltage: AC1500V 1 minute
Operating Force:0.29N-2.98N

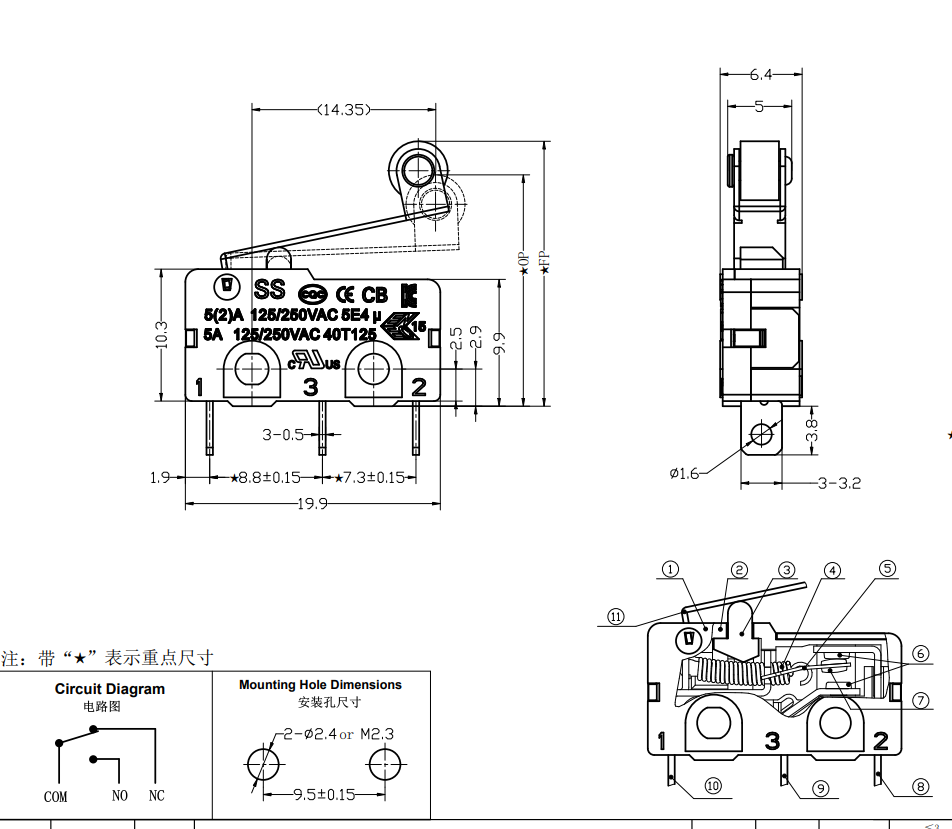

Free position:19.8mm±1.0mm
Operating position:18.0mm±1.0mm
Terminal type:Solder terminal/Straight PCB terminal/110 quick connect terminal/ left side PCB terminal/ right side PCB terminal
Soldering Temperature：350℃ 3-5S
Ambient Temper.Used: -40℃～+125℃
Electronical life: 5E4
Mechanical life:1,000,000 cycles
Function: SPDT/SPST-NO/SPST/NC
Application:
new energy vehicles, home appliances,electronic communication
equipment, DR equipment, industrial equipment,etc.
Certification：
UL, CQC, ENEC,IATF, KC and SO ON
Hot Product
DEWODewo electronic technology
Product category
- DV micro switch
- SS micro switch
- KW micro switch
- Socket
- Waterproof micro switch
- Rocker switch
- Limit switch
- Toggle switch
- Button switch

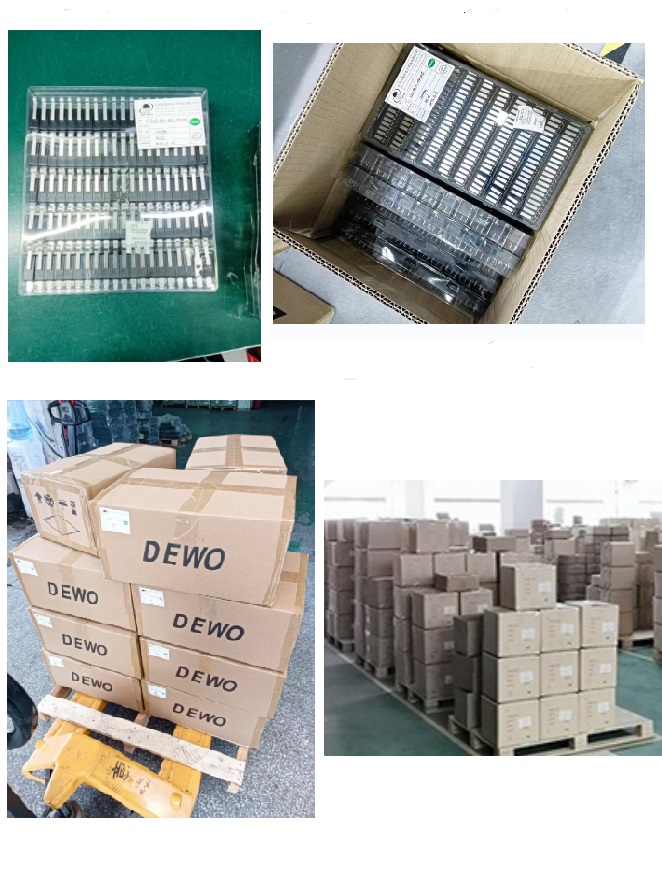

Factory show
